BD-10(20) KV/4000A BDW-10(20) KV/4000A BD-10(20) KV/6000A, 8000A Bush

Current Location:home > products > Standard and ordinary-sized bushes

BD-10(20) KV/4000A BDW-10(20) KV/4000A BD-10(20) KV/6000A, 8000A Bush
Contacts:Section manager
Tel:0086-318-3736777 0086-318-3736111
Mobile: 86-13333086669

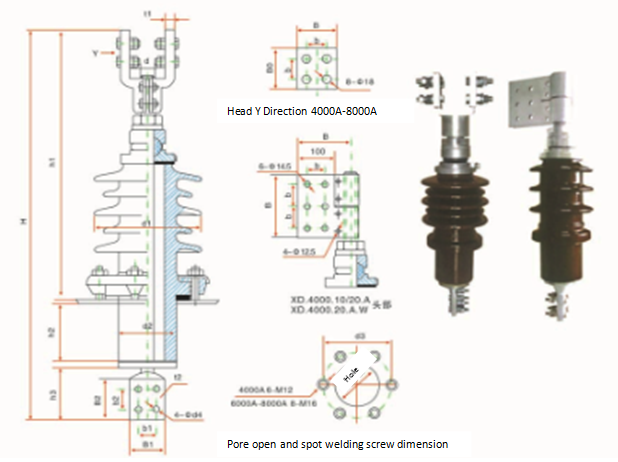

■ Outline dimension

■ Technical parameters and outline dimension of bush

Code	Type-Voltage/ Current KV/A	Creep age Distance(mm)																			Shape	Creep age Distance (mm)	Weight Kg
Code	Type-Voltage/ Current KV/A	H	h1	h2	h3	d	d1	d2	d0	d3	B0	B	b	B1	B2	b1	b2	d4	t1	t2	Shape	Creep age Distance (mm)	Weight Kg
WT.4000.10	BD-10/4000	730	494	114	110	Φ52	180	120	130	190	100	100	45	80	90	45	45	14.5	18	16	Single Umbrella	340	27
WT.4000.20	BD-20/4000	770	534	114	110	Φ52	180	120	130	190	100	100	45	80	90	45	45	14.5	18	16	Single Umbrella	400	29
WT.4000.20.W	BDW-20/4000	770	534	114	110	Φ52	200	120	130	190	100	100	45	80	90	45	45	14.5	18	16	Big and small umbrellas	500	32
WT.4000.10.A	BD-10/4000	695	459	114	110	Φ52	180	120	130	190		155	45	80	90	45	45	14.5		16	Single Umbrella	340	29
WT.4000.20.A	BD-20/4000	735	499	114	110	Φ52	180	120	130	190		155	45	80	90	45	45	14.5		16	Single Umbrella	400	31
WT.4000.20.A.W	BDW-20/4000	735	499	114	110	Φ52	200	120	130	190		155	45	80	90	45	45	14.5		16	Big and small umbrellas	500	34
WT.6000.20	BD-20/6000	1107	779	112	200	Φ62	250	180	195	270	130	120	60	120	150	60	80	18	20	30	Single Umbrella	500	86
WT.8000.20	BD-20/8000	1107	779	112	200	Φ90	250	180	195	270	130	120	60	120	150	60	80	18	22	30	Single Umbrella	500	91
