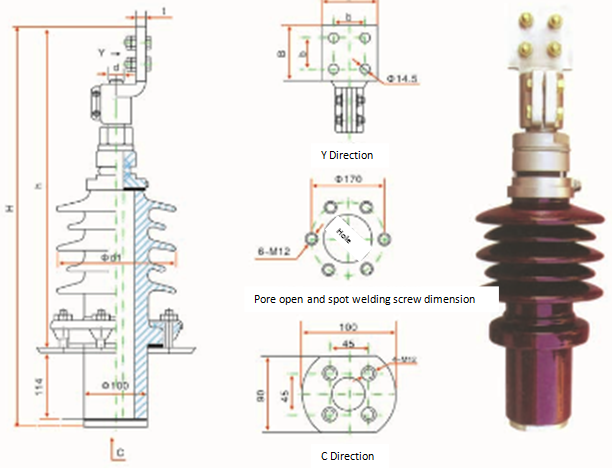

■ Outline dimension
■ Technical parameters and outline dimension of bush
|
Code |
Type-Voltage/Current KV/A |
Dimensions (mm) |
Shape |
Creep age Distance (mm) |
Weight Kg |
||||||
|
H |
h |
d |
d1 |
B |
b |
t |
|
||||
|
WT.0800.10.T |
BD-10/800T |
572 |
446 |
M24 |
150 |
80 |
40 |
12 |
Single Umbrella |
320 |
10 |
|
WT.1000.10.T |
BD-10/1000T |
572 |
446 |
M30 |
150 |
80 |
40 |
12 |
Single Umbrella |
320 |
11 |
|
WT.1200.10.T |
BD-10/1200T |
572 |
446 |
M33 |
150 |
80 |
40 |
12 |
Single Umbrella |
320 |
12 |
|
WT.2000.10.T |
BD-10/1200T |
624 |
496 |
Φ42 |
150 |
100 |
50 |
16 |
Single Umbrella |
320 |
17 |
|
WT.3150.10.T |
BD-10/3150T |
624 |
496 |
Φ48 |
150 |
100 |
50 |
16 |
Single Umbrella |
320 |
19 |
|
WT.0800.20.T |
BD-20/800T |
612 |
486 |
M24 |
160 |
80 |
40 |
12 |
Single Umbrella |
340 |
11 |
|
WT.1000.20.T |
BD-20/1000T |
612 |
486 |
M30 |
160 |
80 |
40 |
12 |
Single Umbrella |
340 |
12 |
|
WT.1200.20.T |
BD-20/1200T |
612 |
486 |
M33 |
160 |
80 |
40 |
12 |
Single Umbrella |
340 |
13 |
|
WT.2000.20.T |
BD-20/1200T |
664 |
536 |
Φ42 |
160 |
100 |
50 |
16 |
Single Umbrella |
340 |
19 |
|
WT.3150.20.T |
BD-20/3150T |
664 |
536 |
Φ48 |
160 |
100 |
50 |
16 |
Single Umbrella |
340 |
21 |
|
WT.0800.20.T.W |
BDW-20/800T |
612 |
612 |
M24 |
160 |
80 |
40 |
12 |
Big and small umbrellas |
480 |
13 |
|
WT.1000.20.T.W |
BDW-20/1000T |
612 |
612 |
M30 |
160 |
80 |
40 |
12 |
Big and small umbrellas |
480 |
14 |
|
WT.1200.20.T.W |
BDW-20/1200T |
612 |
612 |
M33 |
160 |
80 |
40 |
12 |
Big and small umbrellas |
480 |
165 |
|
WT.2000.20.T.W |
BDW-20/1200T |
664 |
664 |
Φ42 |
160 |
100 |
50 |
16 |
Big and small umbrellas |
480 |
21 |
|
WT.3150.20.T.W |
BDW-20/3150T |
664 |
664 |
Φ48 |
160 |
100 |
50 |
16 |
Big and small umbrellas |
480 |
23 |
